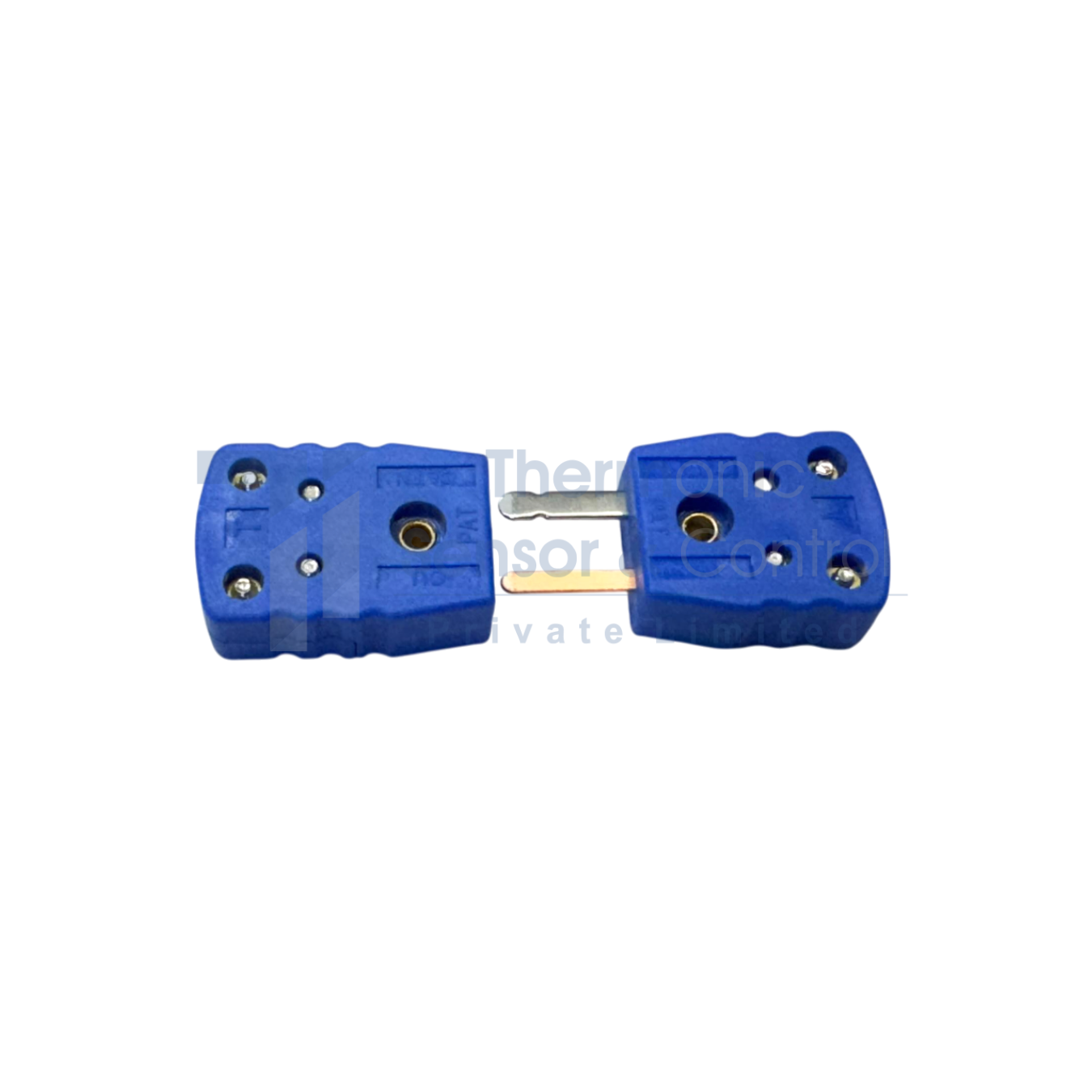

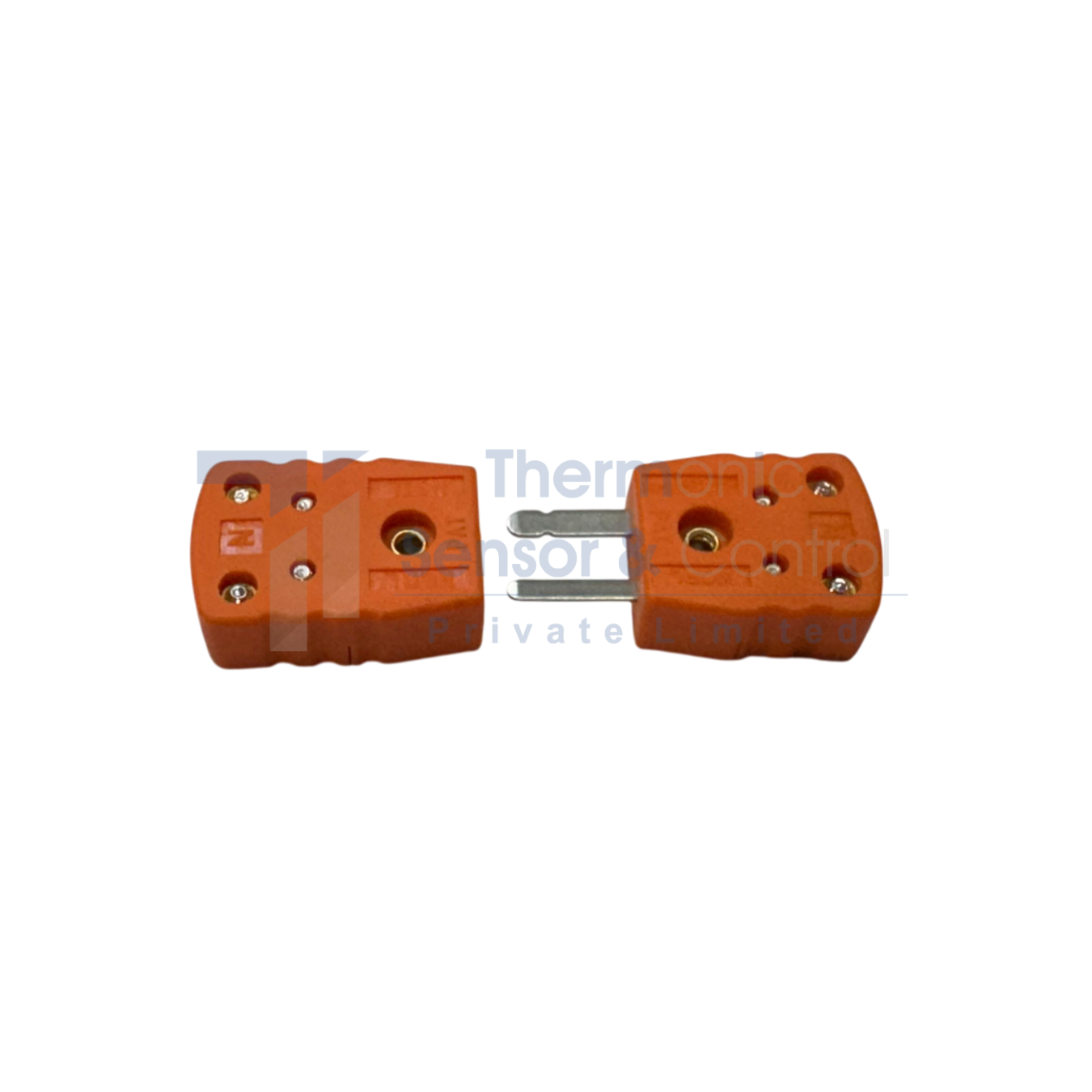

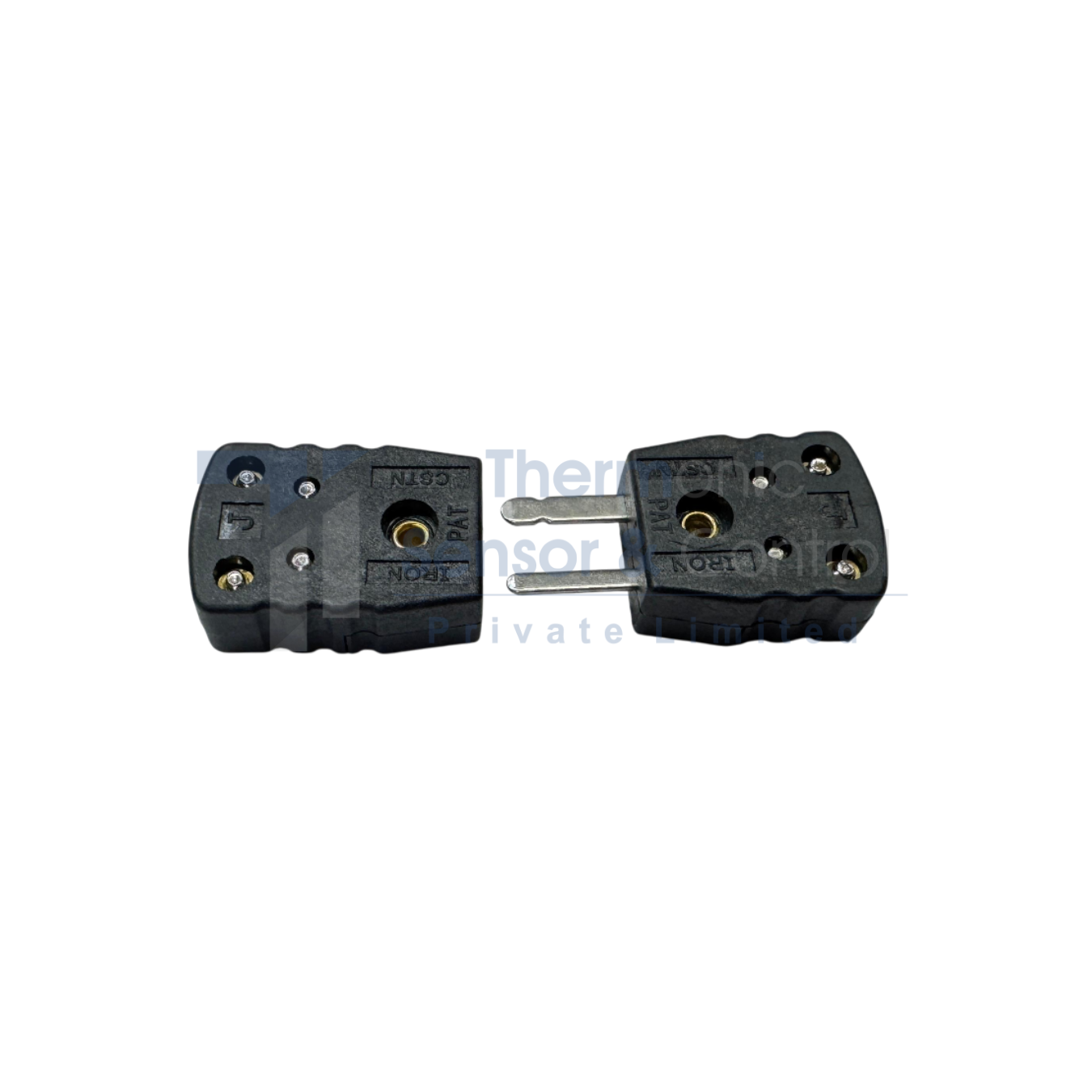

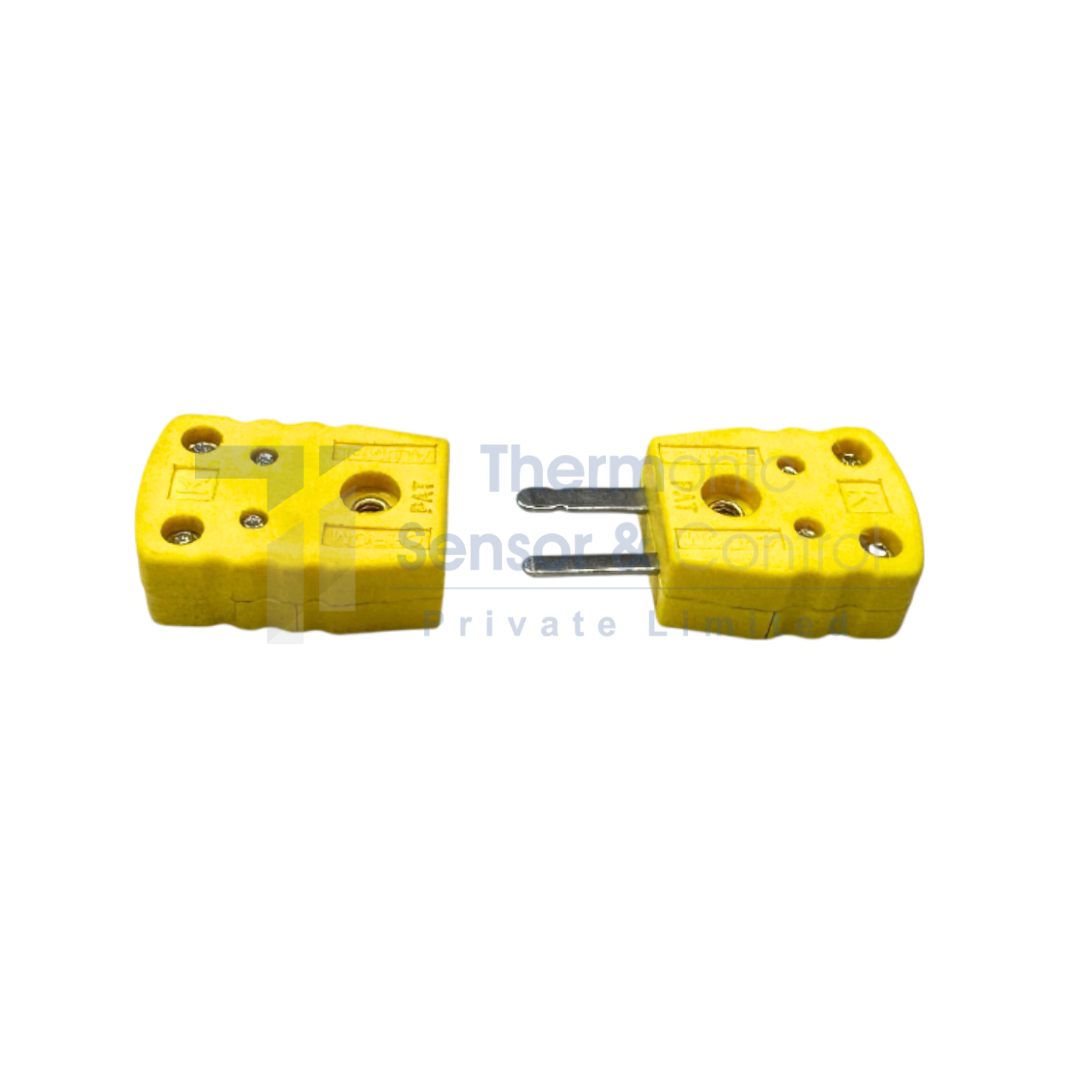

Miniature flat pin thermocouple and rtd connector

A miniature flat pin thermocouple and RTD connector is a type of electrical connector used to connect thermocouples or RTDs (Resistance Temperature Detectors) to measurement or control devices in temperature sensing applications. These connectors are typically small in size and have flat pins or blades that are designed for easy insertion into corresponding receptacles or jacks.

Miniature flat pin thermocouple and RTD connectors are commonly used in various industries, such as HVAC, industrial process control, automotive, aerospace, and scientific research, where accurate and reliable temperature measurement is required. They provide a secure and reliable electrical connection between the temperature sensor and the measurement or control device, allowing for accurate temperature readings and precise temperature control.

  1. Pin Configuration: These connectors typically have flat pins or blades that are designed to match the corresponding receptacles or jacks on the thermocouple or RTD sensor. The pin configuration is usually standardized according to the thermocouple type or RTD standard being used (e.g., Type K, Type J, Type T, PT100, PT1000, etc.).
  2. Connector Type: Miniature flat pin thermocouple and RTD connectors can come in different types, such as male or female connectors, panel-mount or cable-mount connectors, and straight or right-angle connectors, depending on the specific application and installation requirements.
  3. Temperature Range: These connectors are designed to withstand the temperature range of the specific thermocouple or RTD being used, and should be selected accordingly to ensure reliable performance in the intended temperature range of the application.
  4. Compliance with Standards: Miniature flat pin thermocouple and RTD connectors should comply with relevant industry standards, such as ANSI MC96.1 for thermocouples or IEC 60751 for RTDs, to ensure proper compatibility and accuracy of temperature measurements.
  5. Ease of Use: These connectors should be easy to install, connect, and disconnect, with clear labeling or color coding for easy identification of the thermocouple or RTD type, and proper orientation during installation.
